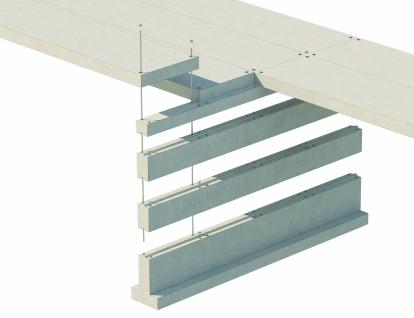

Risers
12” and 24” tall riser elements
are combined and stacked to
desired height. Element tops
come keyed for stacking or fat
for plank-deck bearing.
Plank-Decks
6’ x 25’ standard planks with
tined driving surfaces. Lateral
shear connection options include
formed-in shear keys, bolted
lateral shear connections and
welded lateral shear connections.
Footer
Abutment/bent footers
are typically buried 24”
below fow line and bear on
stabile or amended soil.
Bridge System
D
D
B
B
B
B
C
C
A
A
Applications
INCLUDE
»
Low water crossings
»
Pipe or utility crossings
»
Temporary access installations
»
Private farm, ranch or estate roads
»
Oilfeld access roads
»
Wind farm access roads
»
County roads
Threaded
Rods and Nuts
Note: The Tricon Plank-Deck
TM
Bridge Systemmay
not be suitable for all site conditions. A geotechnical
report is required in order to determine suitability.
